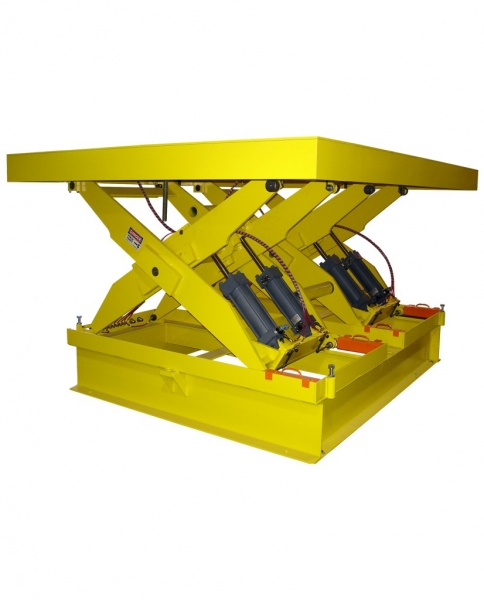

Double Wide Scissor Lift Tables

The Uni-Craft Double Wide Scissor Lift is specifically designed to handle heavy and wide loads. Its ability to lift substantially large objects ranging in capacity up to 100,000 pounds. Strong and durable, the heavy-duty Scissor lift begins with solid steel one-piece arm assemblies ranging from 3/4 inch to 1-1/2 inch thick, depending on travel and capacity. The wide base is ideally suited to increase the stability of this particular scissor lift. Utilizing double scissor arms gives it the capability to lift wide applications with full support. These lift tables can also have a heavy plate reinforced platform to handle concentrated loads. The Double Wide Scissor Lift Series can easily accommodate large assembly or welding applications found in the automotive, steel or heavy equipment industries. When you need a reliable over-sized scissor lift, the Uni-Craft Double Wide Scissor Lift Series can provide you with the ergonomic solution specific to your application.
Maintenance is a part of owning equipment. Routine maintenance schedules can reduce down time and help avoid costly repairs. Uni-Craft engineers the ability to maintain your equipment into every key component of a Uni-Craft manufactured double wide scissor lift we design. Constructed utilizing long lasting component parts, such as; TECOM® combination bearing, central lubrication port systems, TG&P Stress Proof re-grease-able pins, Garmax® bushings, maintenance bars and precision cam followers, Uni-Craft double wide scissor lifts are made for long lasting durability. When maintenance and repair happens, Uni-Craft has you covered, wear parts are readily available and most replacement parts are ready to ship the same day as ordered. Wear parts are easily removed and replaced with hand tools, reducing downtime and saving labor costs. When you need durable hardworking equipment customized to your specific application, you can rely on Uni-Craft.
Double Wide Scissor Lift Features designed for performance and value

• Travel distances ranging to 96”
• Lubricated for life cam follower wheels
• Designed for hand tool removable replacement parts to minimize down time
• Multiple power unit options to meet your speed and voltage requirements (starting at ½ HP)
• Multiple control options including Hand Pendant or Foot Pedal (PLC integration capable)
• Tape Switch® or Beveled Toe Guard options available
• Custom paint and powder-coating options
• Turn table, Gravity/Powered Conveyor, or Ball Transfer integration available
• Velocity fuses available
• Central lubrication port system available

Lift Capacity 2000 lbs. to 100,000 lbs.
Lowered Height 8” to 30” (depending on capacity and travel)

Travel
24”, 36”,  48”, 60” and 72”

Platform Dimensions
50” to 70” W, 120” to 240” L

Lifting Speed
30 FPM (depending on application)

Standard Motor
3 H.P. External

Standard Voltage/Phase/Hz
240, 460/3/60


Options Available
We provide solutions beyond these standard specs for the double wide scissor lift. Please contact us to find out more.

Custom Solutions
We take enormous pride in the fact that we provide solutions for our customers that no one else can. Please take a moment to look through our custom products to see if they will be a fit for your operation.
