Donut load sensor RC 1000 light
Model:
RC 1000 light
Country of Origin:
Germany
Sample Available: No
For product pricing, customization or other inquiries:
View Contact Details
Henning GmbH & Co. KG
-
Germany
- Manufacturer
- Founded: 1980
-
Website:
www.henning-gmbh.de -
Location:
Loher Str. 4 + 30
Schwelm

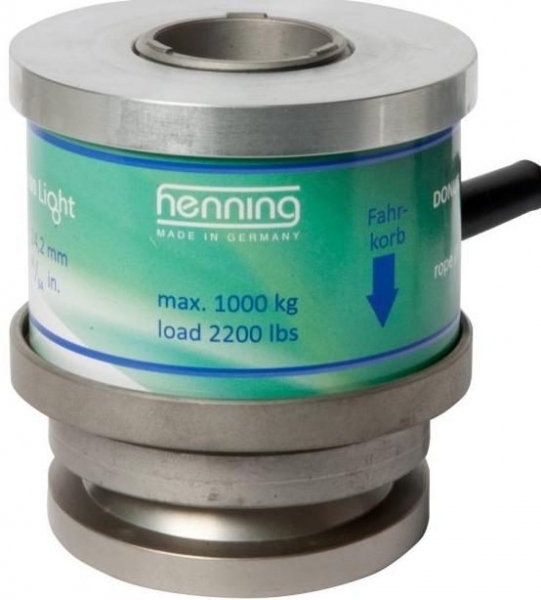

Donut load sensor RC 1000 light
Our donut sensors of the RC-light series are able to measure weights of all types of rope, belt or other support mean. The sensor will have to be calibrated by putting weights into the car.The sensors are easy to operate and need only to be connected to an evaluation unit AE16 or AE8 without entering calibration values for individual sensors.
Technical Data
Our donut sensors of the RC-light series are able to measure weights of all types of rope, belt or other support mean. The sensor will have to be calibrated by putting weights into the car.The sensors are easy to operate and need only to be connected to an evaluation unit AE16 or AE8 without entering calibration values for individual sensors.
Technical Data
- Max. Eye Bolt Ø 24,5 mm / 15/16 inch
- Roughly equivalent to rope diameter 12 - 17 mm / 15/32 inch - 11/16 inch
- Application range 0 - 1000 kg / 0 - 2200 lbs
- Deviation compensation 5°
- Maximum load 2000 kg / 4400 lbs
- Breaking load 4000 kg / 8800 lbs
- Sensor Height 68 mm
- Sensor Ø 65,0 mm
- Connection cable length 2,5 m
- Type of protection IP 20
