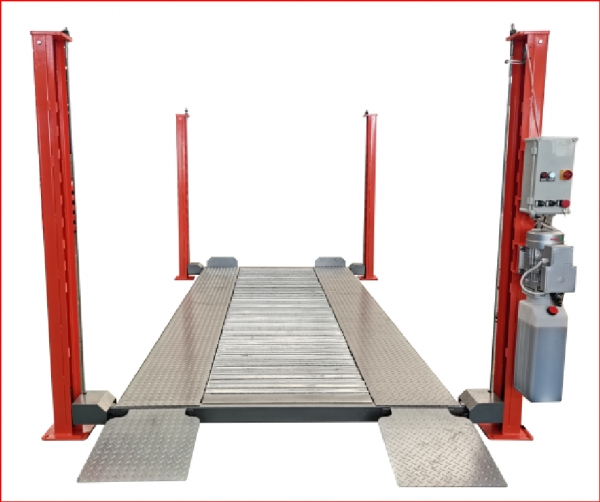

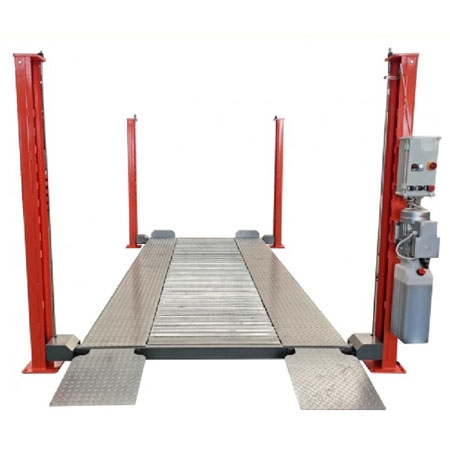

Four post parking lift
For product pricing, customization or other inquiries:
View Contact Details
Qingdao Lanhai Shengyuan Machinery Equipment Co., Ltd
-
China
- Manufacturer
-
Website:
www.antparklift.com -
Location:
Industrial Park Haibin, Huangdao
Qingdao
Shandong
Technical parameters
Name | Four post parking lift | |||
Мodel | PJS601-27 | PJS601-27 | PJS601-32 | PJS601-40 |
Dimension | 4780*2666*2084mm | 5399*2786*2326mm | 4804*2664*2084mm | 4922*2843*2156mm |
Lifting weight | 2700kg | 2700kg | 3200kg | 3600kg |
Рlatform size | 4080/4280*1950mm | 4700*1954mm | 4080/4200*1950mm | 4200*1950mm |
Packing size | 4300*640*700mm | 4800*650*700mm | 4300*640*700mm | 4300*550*700mm |
Equipment weight | 750KG | 900KG | 800KG | 850KG |
Lifting height | 1700/1800mm | 2000mm | 1700/1800mm | 1800mm |
Cylinder | 1 | |||
Motor power | 2.2 KW | 3KW | ||
Operation mode | Key or remote controller（optional） | |||
Control mode | Electric control | |||
Drive mode | Hydraulic driving, steel wire rope lifting | |||
Lock mode | Electric lock or Manual lock（optional） | |||
Voltage | 110-415V, 50/60hz,1/3 phase | |||
color | Refer to RAL card | |||
Surface treatment | Powder coated or hot galvanizing (optional) | |||
